ClimaTek 8" Large Surface Burner Replaces GE Roper Kenmore # WB30X5095 WB30X5060 WB30X0253 325503

Price: $13.99

Quantity:

Product Description


SPECS:

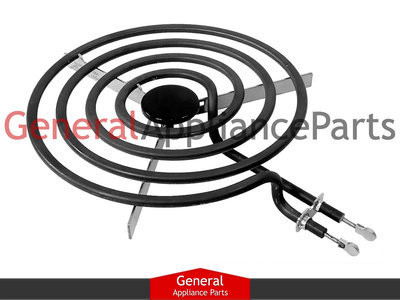

This 8" burner element has 4 turns/rings and has a Y-Frame structure to support the element. This burner element is rated at 2100 watts. The wire looped terminals have been replaced with these solid terminals. This element also replaces some flat style terminal elements.
COMPATIBLE WITH THESE BRANDS:
GE General Electric Hotpoint RCA Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The surface burner elements, those metal components that get red-hot and generate heat, are the most important parts of any range. When the elements fail to heat properly, it's time to replace them. It's a simple procedure any electric stove owner can easily accomplish in a few minutes' time. You can usually identify a burnt-out element by blistering or small holes on the element's coils. A burner that plugs into a receptacle is easy to test, just unplug the non-heating burner, plug it into another working receptacle, restore the power to the range, and test it. If the burner works, you know its original receptacle is probably faulty. If it doesn??t work in the good receptacle, the burner is bad and must be replaced. Do not be alarmed if a new element smokes a little when you first use it. This is a factory-applied green coating, that prevents scratches during shipment, burning away.
REPLACES PART NUMBERS:
WB30X253 WB30X5095 WB30X5060 WB30X0253 325503
USED ON MODELS:
2204*0A 2204*1A 2204*2A 2204W0A 2204W1A 2204W2A 2214*0A 2214*1A 2214*2A 2214W0A 2214W1A 2214W2A 2224*0A 2224*1A 2224W0A 2224W1A 2234*0A 2234*1A 2234*2A 2234W0A 2234W1A 2234W2A 22388L0 22388W0 2244*0A 2244*1A 2244*2A 2244W0A 2244W1A 2244W2A 2265*0A 2265W0A 2275*0A 2275W0A 2336*0A 2336W0A 2354*0A 2354*1A 2354*2A 2354*3A 2354W0A 2354W1A 2354W2A 2354W3A 2356*0A 2356W0A 2364*0A 2364*1A 2364*2A 2364*3A 2364W0A 2364W1A 2364W2A 2364W3A 2366*0A 2366W0A 2406*0A 2406*1A 2406*2A 2406*3A 2406W0A 2406W1A 2406W2A 2406W3A 2414*0A 2414*1A 2414*2A 2414W0A 2414W1A 2414W2A 2424*0A 2424*1A 2424W0A 2426*0A 2426*1A 2426*2A 2426W0A 2426W1A 2426W2A 24488L0 24488W0 2733*0A 2733W0A 2735*0A 2763*0A 2763W0A 2765*0A 2765W0A 2843W0A 2872*0A 2872W0A 3636204190 3636244190 3636424190 3639114190 3639144190 3639164190 3639321191 3639324190 3639324590 3639330193 3639334190 D7507*0 D7507W0 F5057*0 F5057W0 F5258*0 F5258W0 F5558*0 F5558W0 F5607*0 F5607W0 F5608*0 F5608W0 F7107*0 F7107W0 F7607*0 F7607W0 F7608*0 F7608W0 F9027*0 F9107*0 F9107W0 F9108*0 F9108W0 F9157*0 F9157W0 F9207W0 F9208*0 F9208W0 F9817*0 F9817W0 H9608*0 H9608W0 JAS02*M1 JAS02*M2 JAS02*M3 JAS02*N1 JAS02*R1 JAS02*R2 JAS02*R3 JAS02V1 JAS02Y1 JAS02Y2 JAS03*M1 JAS03*M2 JAS03*M3 JAS03*N1 JAS03*R1 JAS03*R2 JAS03*R3 JBP15GIT1WH JBP15GIV1WH JBP18LY1WH JBP23BY1AD JBP23BY1WH JBS02LY1WH JBS02LY2WH JBS04P1 JBS04V1AD JBS04V1WH JBS04V2AD JBS04V2WH JBS05Y1AD JBS05Y1WH JBS05Y2AD JBS05Y2WH JBS23BY1AD JBS23BY1WH JP200P1 JP200V1WH JP201BP1 JP201CBSS JP201CVBC JP202D1WW JP670002 JP676*01 JP676*J1 JP676*J2 JXGC5101 JXGC51T01BB JXGC52T01WW L3B115GL1 L3B115GL2 L3B115GL3 L3B130G0L0 L3B130GL1 L3B130GL2 L3B130GL3WH L3B155L0W L3B315GL0 L3B315GL1 L3B315GL2 N9608*0 N9608W0 RA520W1 RA520W2 RA520W3 RA520W4 RA520W5 RA520W6 RA520W7 RA520W8 RA524W RA524W2 RA524W3 RA524W4 RA524W5 RA524W6 RA524W7 RA524W8 RA620F1CT RA620F1WH RA624F1WH S7257*0 S7257X0
