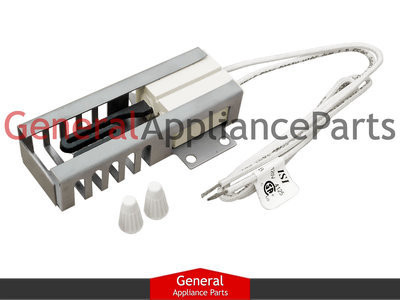

Bosch Thermador Gaggenau Gas Range Oven Cooktop Flat Ignitor Igniter 487242
This igniter's amperage range is 3.3 - 3.6. Used with 3.2 to 3.5 amp rated gas safety valves. Includes: high temperature stainless steel shield high temperature MGT wire leads and high temperature ceramic wire nuts to wire into original harness. Replaces long and short ignitors. Be careful not to drop your new ignitor; ignitors are fragile and will break easily.
Bosch Thermador Gaggenau
The oven igniter, also called a glow bar, heats up the bimetal switch and causes the oven to ignite the gas fed to the burners. A common issue when the oven fails to ignite is a faulty glow bar. If the oven does not start within 90 seconds, the glow bar is likely the issue. Do not be fooled if the glow bar turns red. If it does not reach the appropriate temperature, the oven will not light. If your ignitor uses a connector on the end, reuse the connector from the old ignitor. Use your wire cutters to cut the wires on the old ignitor several inches above the connector. Strip the ends of the wires with a wire stripper. Place the end of a wire on the connector next to the end of a wire on your new ignitor. Use a ceramic wire nut to twist and hold the wires together. Your wires are not color coded, so it does not matter which wires are connected together. Your old ignitor can get very hot even if it doesn't ignite the burner tube.
REPLACES PART NUMBERS:
487242 491375 488049 35-00-189 15-10-136
USED ON MODELS:
GCRG366 PRG304US PRG364GD PRG364GDUS PRG364GL PRG364GLUS PRG366 PRG366US PRG484GGUS PRSG304 PRSG364GD PRSG366 RDSS30
