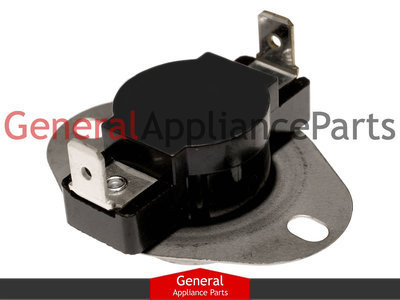

Amana Dryer Washer Range High Limit Switch Y56115 201761 56470 R0611007 56115
This thermostat has a limit of 150 degrees Fahrenheit and a differential of 20 degrees. Meaning that with this thermostat, the heating element will cut out at 150 degrees and cycle back on once the internal temperature drops by 20 degrees.
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
If the limit switch has blown, it might appear black or gray upon inspection. Also, your appliance likely has lost some of its capabilities. Even if you restore power to the appliance by resetting its main circuit breakers, tripped by the limit switch, the appliance might not heat properly. Only after you replace the switch will all of the appliance's typical competences return. Don't replace the switch until you identify the reason your appliance overheated and caused the switch to trigger; otherwise the issue might happen again.
REPLACES PART NUMBERS:
Y56115 201761 56470 R0611007 56115
USED ON MODELS:
HE6350 HG6360 RKS394 RLS312-OF RLS313-OF RLS340-OF RLS342-OF RLS345-OF RLS357-OF RLS358-OF RLS359-OF RMS342-OF RMS357-OF RMS359-OF RMS361-OF RST307/ALL RST3079310 RST307F043 RST307UWW RST309/ALL TEA300 TEA400 TEA600 TEA800 TGA400 TGA600 TGA800
