- ClimaTek Gas Range Oven Stove Cooktop Flat Ignitor Igniter Replaces GE General Electric # WB13K10020
Product Description
SPECS:

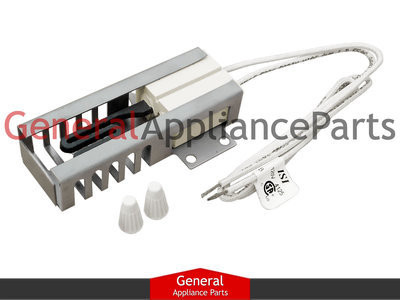

This igniter's amperage range is 3.3 - 3.6. Used with 3.2 to 3.5 amp rated gas safety valves. Includes: high temperature stainless steel shield high temperature MGT wire leads and high temperature ceramic wire nuts to wire into original harness. Replaces long and short ignitors. Be careful not to drop your new ignitor; ignitors are fragile and will break easily.
COMPATIBLE WITH THESE BRANDS:
GE General Electric Hotpoint RCA Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The oven igniter, also called a glow bar, heats up the bimetal switch and causes the oven to ignite the gas fed to the burners. A common issue when the oven fails to ignite is a faulty glow bar. If the oven does not start within 90 seconds, the glow bar is likely the issue. Do not be fooled if the glow bar turns red. If it does not reach the appropriate temperature, the oven will not light. If your ignitor uses a connector on the end, reuse the connector from the old ignitor. Use your wire cutters to cut the wires on the old ignitor several inches above the connector. Strip the ends of the wires with a wire stripper. Place the end of a wire on the connector next to the end of a wire on your new ignitor. Use a ceramic wire nut to twist and hold the wires together. Your wires are not color coded, so it does not matter which wires are connected together. Your old ignitor can get very hot even if it doesn't ignite the burner tube.
REPLACES PART NUMBERS:
WB13K10020
USED ON MODELS:
CGS980SEM1SS CGS980SEM2SS CGS980SEM3SS CGS980SEM4SS CGS980SEM5SS CGS980SEM6SS CGS980SEM7SS CGS985SET1SS EGR3000EP1BB EGR3000EP1WW EGR3000EP2BB EGR3000EP2WW EGR3001EP1SS EGR3001EP2SS JGB281DER1BB JGB281DER1CC JGB281DER1WW JGB281DER2BB JGB281DER2CC JGB281DER2WW JGB281DER3BB JGB281DER3CC JGB281DER3WW JGB281DER4BB JGB281DER4CC JGB281DER4WW JGB281MER1BS JGB281MER2BS JGB281MER3BS JGB281MER4BS JGB281SER1SS JGB281SER2SS JGB281SER3SS JGB281SER4SS JGB282DET1BB JGB282DET1WW JGB282SET1SS JGB285DET1BB JGB285DET1WW JGB285SET1SS JGB295DER1BB JGB295DER1WW JGB295DER2BB JGB295DER2WW JGB295SER1SS JGB295SER2SS JGB296DET1BB JGB296DET1WW JGB296SET1SS JGB3000ER2BB JGB3000ER2WW JGB3000ER3BB JGB3000ER3WW JGB3001ER1SS JGB3001ER2SS JGB3001ER3SS JGB300DEP1BB JGB300DEP1WW JGB300DEP2BB JGB300DEP2WW JGB300DEP3BB JGB300DEP3WW JGB300DEP4BB JGB300DEP4WW JGB300SEP1SS JGB300SEP2SS JGB300SEP3SS JGB300SEP4SS JGB400DEP2BB JGB400DEP2WW JGB400DEP3BB JGB400DEP3WW JGB400DEP4BB JGB400DEP4WW JGB400SEP2SS JGB400SEP3SS JGB400SEP4SS JGB428SER1SS JGB428SER2SS JGB500DEP1BB JGB500DEP1WW JGB500DEP2BB JGB500DEP2WW JGB500DEP3BB JGB500DEP3WW JGB500SEP1SS JGB500SEP2SS JGB500SEP3SS JGB600DET1BB JGB600DET1WW JGB600SET1SS JGB605DET1BB JGB605DET1WW JGB605SET1SS JGB800DEP1BB JGB800DEP1CC JGB800DEP1WW JGB800DEP2BB JGB800DEP2CC JGB800DEP2WW JGB800SEP1SS JGB800SEP2SS JGB805DEP1BB JGB805DEP1WW JGB805DEP2BB JGB805DEP2WW JGB805DEP3BB JGB805DEP3WW JGB805SEP1SS JGB805SEP2SS JGB805SEP3SS JGB80XSER1SS JGB810DEP1BB JGB810DEP1CC JGB810DEP1WW JGB810DEP2BB JGB810DEP2CC JGB810DEP2WW JGB810DET1BB JGB810DET1CC JGB810DET1WW JGB810SEP1SS JGB810SEP2SS JGB810SET1SS JGB820DEP1BB JGB820DEP1WW JGB820DEP2BB JGB820DEP2WW JGB820SEP1SS JGB820SEP2SS JGB840SET1SS JGB900BEK2BB JGB900BEK3BB JGB900BEK4BB JGB900BEK5BB JGB900BEK6BB JGB900BEK7BB JGB900CEK2CC JGB900CEK3CC JGB900CEK4CC JGB900CEK5CC JGB900CEK6CC JGB900CEK7CC JGB900SEK1SS JGB900SEK2SS JGB900SEK3SS JGB900SEK4SS JGB900SEK5SS JGB900SEK6SS JGB900SEL1SS JGB900SEL2SS JGB900SEP1SS JGB900SEP2SS JGB900WEK2WW JGB900WEK3WW JGB900WEK4WW JGB900WEK5WW JGB900WEK6WW JGB900WEK7WW JGB908BEK2BB JGB908BEK3BB JGB908BEK4BB JGB908BEK5BB JGB908BEK6BB JGB908BEK7BB JGB908BEK8BB JGB908BEK9BB JGB908CEK2CC JGB908CEK3CC JGB908CEK4CC JGB908CEK5CC JGB908CEK6CC JGB908CEK7CC JGB908SEK2SS JGB908SEK3SS JGB908SEK4SS JGB908SEK5SS JGB908SEL1SS JGB908SEL2SS JGB908SEL3SS JGB908SEL4SS JGB908SEL5SS JGB908WEK2WW JGB908WEK3WW JGB908WEK4WW JGB908WEK5WW JGB908WEK6WW JGB908WEK7WW JGB908WEK8WW JGB908WEK9WW JGB916BEK2BB JGB916BEK3BB JGB916BEK4BB JGB916BEK5BB JGB916BEK6BB JGB916BEK7BB JGB916CEK2CC JGB916CEK3CC JGB916CEK4CC JGB916CEK5CC JGB916CEK6CC JGB916CEK7CC JGB916SEK2SS JGB916SEK3SS JGB916SEK4SS JGB916SEK5SS JGB916SEL1SS JGB916SEL2SS JGB916SEL3SS JGB916WEK2WW JGB916WEK3WW JGB916WEK4WW JGB916WEK5WW JGB916WEK6WW JGB916WEK7WW JGB918BEK2BB JGB918BEK3BB JGB918BEK4BB JGB918BEK5BB JGB918BEK6BB JGB918BEK7BB JGB918CEK2CC JGB918CEK3CC JGB918CEK4CC JGB918CEK5CC JGB918CEK6CC JGB918CEK7CC JGB918SEK2SS JGB918SEK3SS JGB918SEK4SS JGB918SEK5SS JGB918SEL1SS JGB918SEL2SS JGB918SEL3SS JGB918WEK2WW JGB918WEK3WW JGB918WEK4WW JGB918WEK5WW JGB918WEK6WW JGB918WEK7WW JGB928BEK2BB JGB928BEK3BB JGB928BEK4BB JGB928BEK5BB JGB928BEK6BB JGB928KEK2CC JGB928KEK3CC JGB928KEK4CC JGB928KEK5CC JGB928KEK6CC JGB928SEK2SS JGB928SEK3SS JGB928SEK4SS JGB928SEK5SS JGB928SEL1SS JGB928SEL2SS JGB928TEK2WW JGB928TEK3WW JGB928TEK4WW JGB928TEK5WW JGB928TEK6WW JGBP88BEK1BB JGBP88BEK2BB JGBP88BEK3BB JGBP88BEK4BB JGBP88BEL1BB JGBP88BEL2BB JGBP88BEL3BB JGBP88CEK1CC JGBP88CEK2CC JGBP88CEK3CC JGBP88CEK4CC JGBP88CEL1CC JGBP88CEL2CC JGBP88CEL3CC JGBP88DEM1BB JGBP88DEM1CC JGBP88DEM1WW JGBP88DEM2BB JGBP88DEM2CC JGBP88DEM2WW JGBP88DEM3BB JGBP88DEM3CC JGBP88DEM3WW JGBP88SEK2SS JGBP88SEK3SS JGBP88SEK4SS JGBP88SEL1SS JGBP88SEL2SS JGBP88SEL3SS JGBP88SEM1SS JGBP88SEM2SS JGBP88SEM3SS JGBP88WEK1WW JGBP88WEK2WW JGBP88WEK3WW JGBP88WEK4WW JGBP88WEL1WW JGBP88WEL2WW JGBP88WEL3WW JGBP89DEM1BB JGBP89DEM1WW JGBP89DEM2BB JGBP89DEM2WW JGBP89DEM3BB JGBP89DEM3WW JGBP89SEM1SS JGBP89SEM2SS JGBP89SEM3SS PGB900DEM1BB PGB900DEM1CC PGB900DEM1WW PGB900DEM2BB PGB900DEM2CC PGB900DEM2WW PGB900DEM3BB PGB900DEM3CC PGB900DEM3WW PGB900DEM4BB PGB900DEM4CC PGB900DEM4WW PGB900DEM5BB PGB900DEM5WW PGB900DET1BB PGB900DET1WW PGB900SEM1SS PGB900SEM2SS PGB900SEM3SS PGB900SEM4SS PGB900SEM5SS PGB900SET1SS PGB908DEM1BB PGB908DEM1CC PGB908DEM1WW PGB908DEM2BB PGB908DEM2CC PGB908DEM2WW PGB908DEM3BB PGB908DEM3CC PGB908DEM3WW PGB908DEM4BB PGB908DEM4CC PGB908DEM4WW PGB908SEM1SS PGB908SEM2SS PGB908SEM3SS PGB908SEM4SS PGB910DET1BB PGB910DET1CC PGB910DET1WW PGB910SEM1SS PGB910SEM2SS PGB910SEM3SS PGB910SEM4SS PGB910SET1SS PGB915SET1SS PGB916DEM1BB PGB916DEM1CC PGB916DEM1WW PGB916DEM2BB PGB916DEM2CC PGB916DEM2WW PGB916DEM3BB PGB916DEM3CC PGB916DEM3WW PGB916DEM4BB PGB916DEM4CC PGB916DEM4WW PGB916SEM1SS PGB916SEM2SS PGB916SEM3SS PGB916SEM4SS PGB918DEM1BB PGB918DEM1WW PGB918DEM2BB PGB918DEM2WW PGB918DEM3BB PGB918DEM3WW PGB918DEM4BB PGB918DEM4WW PGB918SEM1SS PGB918SEM2SS PGB918SEM3SS PGB918SEM4SS PGB928SEM1SS PGB928SEM2SS PGB928SEM3SS PGB928TEM1WW PGB928TEM2WW PGB930DET1BB PGB930DET1WW PGB930SET1SS PGB935SET1SS PGB975SEM1SS PGB975SEM2SS PGB975SEM3SS PGB975SEM4SS PGB980SET1SS ZDP364LDP1SS ZDP364LDP2SS ZDP364LDP3SS ZDP364LDP4SS ZDP364NDP1SS ZDP364NDP2SS ZDP364NDP3SS ZDP364NDP4SS ZDP484LGP1SS ZDP484LGP2SS ZDP484LGP3SS ZDP484LGP4SS ZDP484NGP1SS ZDP484NGP2SS ZDP484NGP3SS ZDP484NGP4SS ZDP486LDP1SS ZDP486LDP2SS ZDP486LDP3SS ZDP486LDP4SS ZDP486NDP1SS ZDP486NDP2SS ZDP486NDP3SS ZGP364LDR1SS ZGP364NDR1SS ZGP484LGR1SS ZGP484NGR1SS ZGP486LDR1SS ZGP486LRR1SS ZGP486NDR1SS ZGP486NRR1SS ZGU364LDP1SS ZGU364LDP2SS ZGU364LDP3SS ZGU364LDP4SS ZGU364NDP1SS ZGU364NDP2SS ZGU364NDP3SS ZGU364NDP4SS ZGU484LGP1SS ZGU484LGP2SS ZGU484LGP3SS ZGU484LGP4SS ZGU484NGP1SS ZGU484NGP2SS ZGU484NGP3SS ZGU484NGP4SS ZGU486LDP1SS ZGU486LDP2SS ZGU486LDP3SS ZGU486LDP4SS ZGU486NDP1SS ZGU486NDP2SS ZGU486NDP3SS ZGU486NDP4SS
