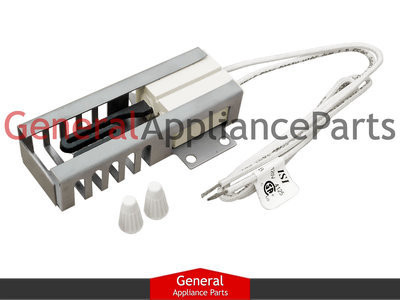

ClimaTek Gas Range Oven Stove Cooktop Flat Ignitor Igniter Replaces Whirlpool KitchenAid # 9782065
Price: $14.95
Product Description
SPECS:
This igniter's amperage range is 3.3 - 3.6. Used with 3.2 to 3.5 amp rated gas safety valves. Includes: high temperature stainless steel shield high temperature MGT wire leads and high temperature ceramic wire nuts to wire into original harness. Replaces long and short ignitors. Be careful not to drop your new ignitor; ignitors are fragile and will break easily.
COMPATIBLE WITH THESE BRANDS:
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The oven igniter, also called a glow bar, heats up the bimetal switch and causes the oven to ignite the gas fed to the burners. A common issue when the oven fails to ignite is a faulty glow bar. If the oven does not start within 90 seconds, the glow bar is likely the issue. Do not be fooled if the glow bar turns red. If it does not reach the appropriate temperature, the oven will not light. If your ignitor uses a connector on the end, reuse the connector from the old ignitor. Use your wire cutters to cut the wires on the old ignitor several inches above the connector. Strip the ends of the wires with a wire stripper. Place the end of a wire on the connector next to the end of a wire on your new ignitor. Use a ceramic wire nut to twist and hold the wires together. Your wires are not color coded, so it does not matter which wires are connected together. Your old ignitor can get very hot even if it doesn't ignite the burner tube.
REPLACES PART NUMBERS:
9782065
USED ON MODELS:
GW395LEGB5 GW395LEGB6 GW395LEGQ5 GW395LEGQ6 GW395LEGT5 GW395LEGT6 KGRC608LSS0 KGRC707LBL0 KGRC707LBS0 KGRC707LBT0 KGRC707LWH0 KGRT600HBL6 KGRT600HBL8 KGRT600HBL9 KGRT600HBT6 KGRT600HBT8 KGRT600HBT9 KGRT600HWH6 KGRT600HWH8 KGRT600HWH9 KGRT607HBL6 KGRT607HBL8 KGRT607HBL9 KGRT607HBS6 KGRT607HBS8 KGRT607HBS9 KGRT607HBT6 KGRT607HBT8 KGRT607HBT9 KGRT607HWH6 KGRT607HWH8 KGRT607HWH9 KGSC308LSS0 KGST300HBL6 KGST300HBL8 KGST300HBL9 KGST300HBT6 KGST300HBT8 KGST300HBT9 KGST300HWH6 KGST300HWH8 KGST300HWH9 KGST307HBL6 KGST307HBL8 KGST307HBS6 KGST307HBS8 KGST307HBS9 KGST307HBT6 KGST307HBT8 KGST307HBT9 KGST307HWH6 KGST307HWH8 KGST307HWH9 WLP34200 WLP34800 WLP34900 YGW395LEGB5 YGW395LEGB6 YGW395LEGQ5 YGW395LEGQ6 YKGRC608LS0 YKGRT607HB6 YKGRT607HB8 YKGRT607HB9 YKGRT607HS6 YKGRT607HS8 YKGRT607HS9 YKGRT607HT6 YKGRT607HT8 YKGRT607HT9 YKGRT607HW6 YKGRT607HW8 YKGRT607HW9 YKGSC308LS0 YKGST307HB6 YKGST307HB8 YKGST307HB9 YKGST307HS6 YKGST307HS8 YKGST307HS9 YKGST307HW6 YKGST307HW8 YKGST307HW9
