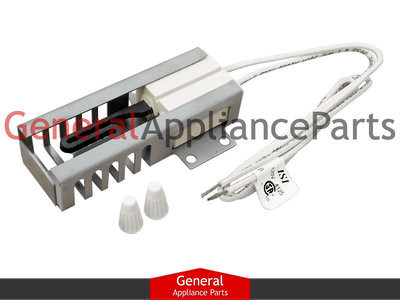

- ClimaTek Gas Range Oven Stove Cooktop Flat Ignitor Igniter Replaces Whirlpool Roper # 9751123 816624
Product Description
SPECS:
This igniter's amperage range is 3.3 - 3.6. Used with 3.2 to 3.5 amp rated gas safety valves. Includes: high temperature stainless steel shield high temperature MGT wire leads and high temperature ceramic wire nuts to wire into original harness. Replaces long and short ignitors. Be careful not to drop your new ignitor; ignitors are fragile and will break easily.
COMPATIBLE WITH THESE BRANDS:
Whirlpool Estate KitchenAid Roper Maytag Admiral Amana Speed Queen Jenn-Air Magic Chef Crosley Caloric Glenwood Hardwick Menumaster Modern Maid Montgomery Wards Norge JC Penney Wards Sears Kenmore
OEM / AFTERMARKET:
Aftermarket
DESCRIPTION:
The oven igniter, also called a glow bar, heats up the bimetal switch and causes the oven to ignite the gas fed to the burners. A common issue when the oven fails to ignite is a faulty glow bar. If the oven does not start within 90 seconds, the glow bar is likely the issue. Do not be fooled if the glow bar turns red. If it does not reach the appropriate temperature, the oven will not light. If your ignitor uses a connector on the end, reuse the connector from the old ignitor. Use your wire cutters to cut the wires on the old ignitor several inches above the connector. Strip the ends of the wires with a wire stripper. Place the end of a wire on the connector next to the end of a wire on your new ignitor. Use a ceramic wire nut to twist and hold the wires together. Your wires are not color coded, so it does not matter which wires are connected together. Your old ignitor can get very hot even if it doesn't ignite the burner tube.
REPLACES PART NUMBERS:
9751123 816624
USED ON MODELS:
FGS385BL0 FGS385BL1 FGS385BL2 FGS385BL3 FGS385BL4 FGS385BL5 FGS385BQ1 FGS385BQ2 FGS385BQ3 FGS385BW0 FGS385BW1 FGS385BW2 FGS385BW3 FGS385BW4 FGS385BW5 FGS385YW0 FGS385YW1 FGS385YW2 KGRT500BAL1 KGRT500BAL2 KGRT500BAL3 KGRT500BWH1 KGRT500BWH2 KGRT500BWH3 KGRT500FAL0 KGRT500FAL1 KGRT500FWH0 KGRT500FWH1 KGRT507BAL1 KGRT507BAL2 KGRT507BAL3 KGRT507BBL1 KGRT507BBL2 KGRT507BBL3 KGRT507BWH1 KGRT507BWH2 KGRT507BWH3 KGRT507FAL0 KGRT507FAL1 KGRT507FBL0 KGRT507FBL1 KGRT507FWH0 KGRT507FWH1 KGST300BAL0 KGST300BAL1 KGST300BAL2 KGST300BWH0 KGST300BWH1 KGST300BWH2 KGST300FAL0 KGST300FAL1 KGST300FWH0 KGST300FWH1 KGST307BAL0 KGST307BAL1 KGST307BAL2 KGST307BBL0 KGST307BBL1 KGST307BBL2 KGST307BWH0 KGST307BWH1 KGST307BWH2 KGST307FAL0 KGST307FAL1 KGST307FBL0 KGST307FBL1 KGST307FWH0 KGST307FWH1 SB160PEEB6 SB160PEEB7 SB160PEEB8 SB160PEEB9 SB160PEEQ6 SB160PEEQ7 SB160PEEQ8 SB160PEEQ9 SB160PEXB0 SB160PEXQ0 SB160PEXQ1 SE960PEYN3 SE960PEYW0 SE960PEYW1 SE960PEYW2 SE960PEYW3 SF365BEXW0 SF365BEXW1 SF365BEYN3 SF365BEYN4 SF365BEYN5 SF365BEYN6 SF365BEYQ0 SF365BEYQ1 SF365BEYQ2 SF365BEYQ3 SF365BEYQ4 SF365BEYQ5 SF365BEYQ6 SF365BEYQ7 SF365BEYW0 SF365BEYW1 SF365BEYW2 SF365BEYW3 SF365BEYW4 SF365BEYW5 SF365BEYW6 SF367PEYB1 SF367PEYB2 SF367PEYB3 SF367PEYN0 SF367PEYN1 SF367PEYN2 SF367PEYN3 SF367PEYN4 SF367PEYN6 SF367PEYN7 SF367PEYQ0 SF367PEYQ1 SF367PEYQ2 SF367PEYQ3 SF367PEYQ4 SF367PEYQ5 SF367PEYQ6 SF367PEYQ7 SF367PEYQ8 SF367PEYQ9 SF367PEYW0 SF367PEYW1 SF367PEYW2 SF367PEYW3 SF367PEYW4 SF367PEYW6 SF367PEYW7 SF385PEWW0 SF385PEWW1 SF385PEWW2 SF385PEWW3 SF385PEWW4 SF385PEYN3 SF385PEYN4 SF385PEYQ0 SF385PEYQ2 SF385PEYQ3 SF385PEYQ4 SF385PEYQ5 SF385PEYW0 SF385PEYW1 SF385PEYW2 SF385PEYW3 SF385PEYW4 SF386PEWW0 SF386PEWW1 SF386PEWW2 SF386PEWW3 SF386PEWW4 SF387PCYW0 SF387PCYW1 SF387PCYW2 SF387PEYB3 SF387PEYB4 SF387PEYB5 SF387PEYB6 SF387PEYB7 SF387PEYB8 SF387PEYN0 SF387PEYN1 SF387PEYN3 SF387PEYN4 SF387PEYN5 SF387PEYN6 SF387PEYN7 SF387PEYN8 SF387PEYQ1 SF387PEYQ2 SF387PEYQ3 SF387PEYQ4 SF387PEYQ5 SF387PEYQ6 SF387PEYQ7 SF387PEYQ8 SF387PEYW0 SF387PEYW1 SF387PEYW3 SF387PEYW4 SF387PEYW5 SF387PEYW6 SF387PEYW7 SF387PEYW8 SF397PEYQ1 SF397PEYQ2 SF397PEYW0 SM980PEYW0 SM980PEYW2 TGR88W2BN0 TGR88W2BW0
